Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System

Applicable Industries : Farms, Food Shop

Condition : New

Place of Origin : Shanghai, China

Ice Shape : ICE BLOCK

Voltage : 380v/50hz/3p

Power : 35kw

Dimension(L*W*H) : 5600*1000*2250mm

Weight : 8100 KG

Warranty : 1.5 years

Key Selling Points : High Productivity

Ice storage capacity : 10000kg

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1.5 years

Core Components : Motor

Application : Industrial

After-sales Service Provided : Engineers available to service machinery overseas

Name : brine system block ice machine

Compressor : Bitzer

Cooling way : Water Cooling

Refrigerant : R22

Material : SUS304 Staineless Steel

Keyword : brine cooling block ice machine

Ice size : 5/10/15/20/25/50kg

Type : Automatic Brine-cooling Block Ice Machine

Product name : Commercial brine system Ice Block Maker

Packaging Details : Standard wooden cases and transport in container.

Port : shanghai

Supply Ability : 100 Set/Sets per Year

Price : $30,000.00/sets >=1 sets

MOQ : 1pc

Contact Now

FOCUSUN

Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System

Our Company

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems.Our main products include all kinds of ice making machine,cold storage,vacuum cooler,snow making machine,mine cooling sysrtem,concrete cooling system,chemical reactor cooling system and more.

With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

Product Description

Features

1.Patented UNI-EVEPTM procesiing technology ensures larger evaporaqtion area and higher cooling efficiency

2.The part inside brine tank that touches brine water is made of SUS304 which bears low temperature and highly resists rusts.

3.Particular can dumper and thawing tank design makes easier operation.

4.Thawing tank is heated by air discharged from compressor to save much energy and suits for low water temperature area.

5.Every brine block ice machine can be designed and built as per your specific requirements.

MODE	DAILY PRODUCTION	REFRIGERANT	ELECTRICITY POWER	SIZE(LWH)
FIB-100WHB	10 TON	R22	34KW	UNIT:L1800W1000H1450mm EVAPORATOR:L4800W1000H2250 COOLING TOWER:Φ2000*H2410

SETTING INFORMATION
Ice Making Theory	Brine System
Power Supply	380V/220V
Material	stainless steel 304 and Galvanized steel
Paiting	Blue
Ice Size	5kg, 10kg, 15kg, 20kg, 25kg, 50kg

Detailed Images

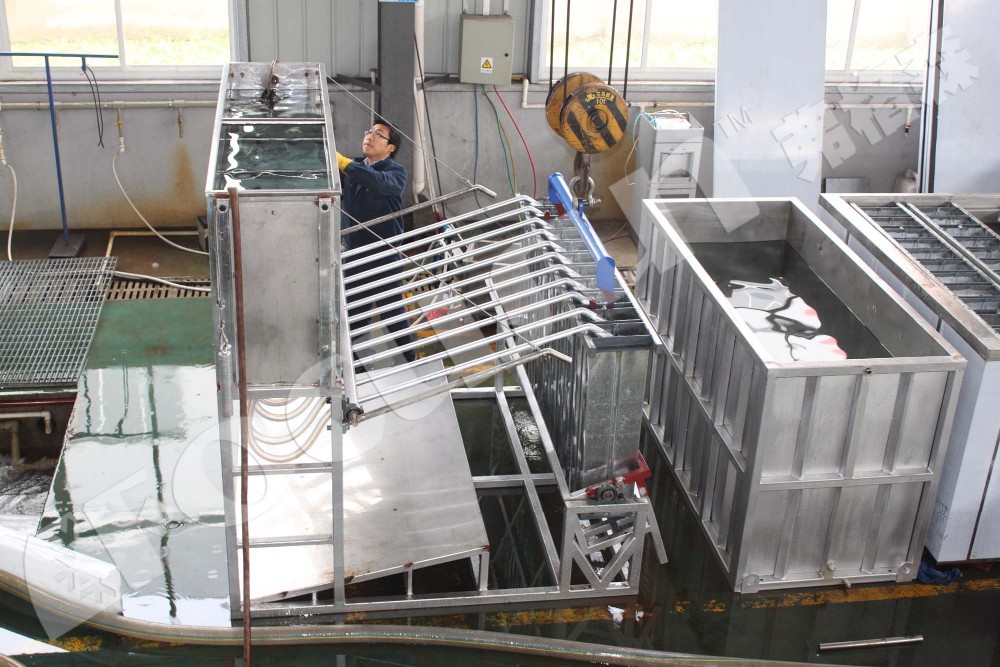

Brine system block ice machine configuration

1) Brine tank

The stainless steel part between the brine water and the brine tank highly resists rust and it works well in a cold condition.Concrete brine tank is also suggestibale for some projects.

2) Ice bucket

Stainlessw steel 304 and galvanized steel are available.The later is chosen for cost-saving.

3) Evaporator:

Paktong tubes are used as evaporator coil to improve the heat transfer effect,and its stainlessness,anti-corrosion can guarantee the long service time.

4) Agitator:

Adjust the salt concentration to improve the heat exchange effect.

5) Can dumper:

Excellent design guarantees the ice-thawing efficiency.

6) Thawing tank:

Heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.

Ice weight:	5kg (125mm x 100mm x 600mm) 10kg (155mm x 100mm x 750mm) 15kg (185mm x 100mm x 750mm) 20kg (245mm x 125mm x 750mm) 25kg (315mm x 125mm x 750mm) 50kg (480mm x 160mm x 750mm)

Ice-making hours	5kg 4~4.5hours 10kg 4~4.5hours 15kg 4~4.5hours 20kg 6~6.5hours 25kg 6~6.5hours 50kg 9~9.5hours

Usage	For seafood, for fishery, all product needs a cooling effect

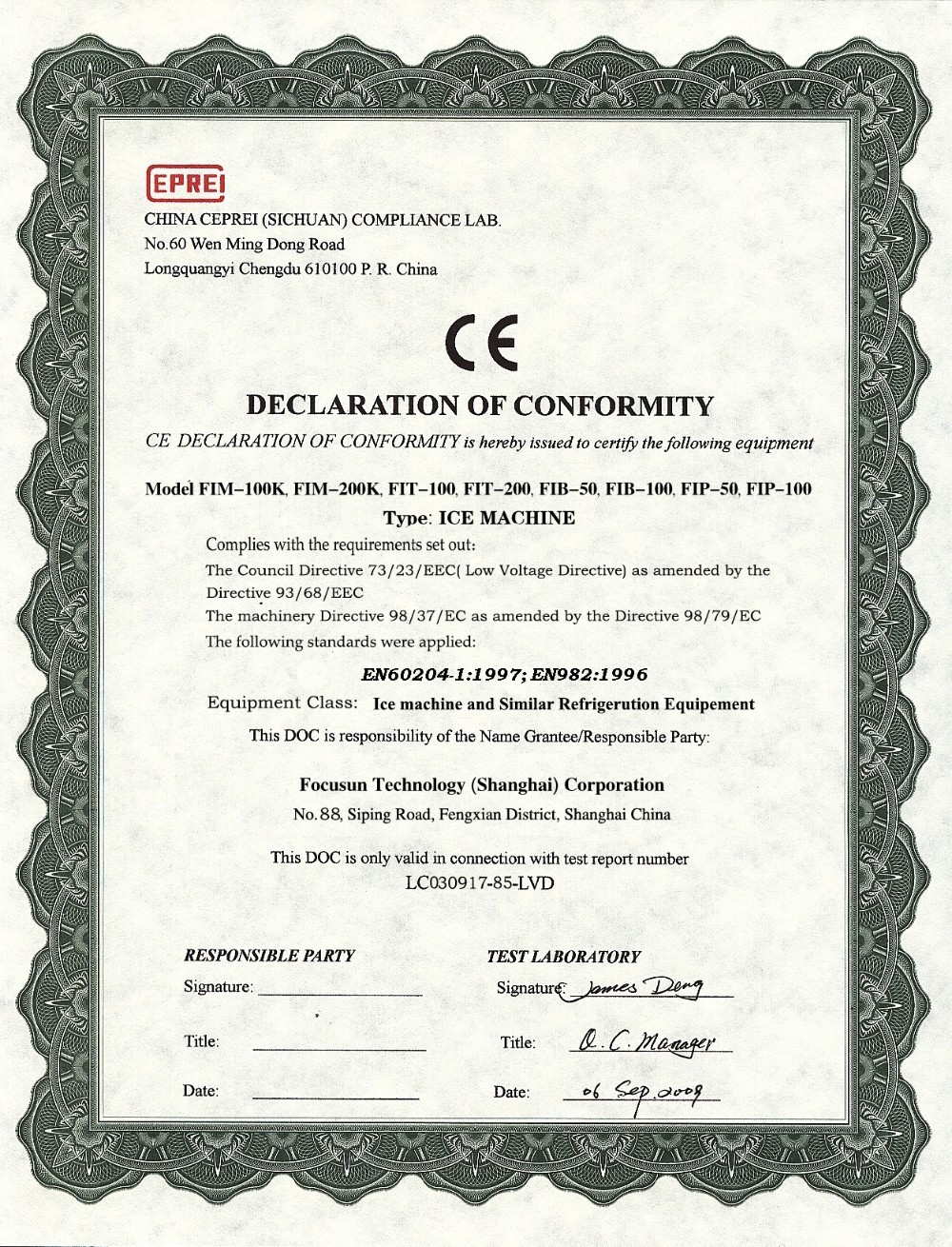

Certifications

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Factory visit
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5.Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
Q6. What is your aim?
A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Packing & Delivery

Packaging Details:

1. Standard wooden case.

2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.

3. Machine comes into use, customer only need prepare power for the machine.

4. All required components for installing the machine will be provided.

Delivery Detail:45 Days
